MODULE
S-Series
The S- series screen is the smallest thickness and ultra-lightening screen compared to previous screen, providing the best design for customers at various installation sites, and maximizes user convenience, including wireless operation and remote control.
| Specifications | |||||
|---|---|---|---|---|---|
| P0.9 | P1.2 | P1.58 | P1.9 | P2.5 | |
| Pixel pitch(mm) | 0.9 | 1.2 | 1.58 | 1.9 | 2.5 |
| LED Type | SMD | ||||
| Brightness(cd/m²) | 600 | ||||
| Refresh Rate(Hz) | 1,920 | 1,920/3,840 | |||
| Power Consumption (Max/Ave)(W/m²) |
650/260 | ||||
| Panel Resolution | 640x360 | 480x270 | 348x216 | 320x180 | 240x135 |
| Panel Size(mm) | 610x343x29 | ||||
| Weight (kg/panel) | 4.5 | ||||
| IP level | IP30 | ||||
| Gray Scale(Bit) | 14~16 | ||||
| Maintenance | Front | ||||
- All in one, slim, light, Best-in-the-field design.
- The thickness of screen is only 29mm. the screen protrude 55mm on the wall mounted condition. It needs 140mm thickness for double faced screen installation.
- Wireless operation enables convenient operation environment using devices such as mobile phone, Smart pads and laptop.
- Maximize user utilization, such as remote control and multi-screen segmentation.
- Uniform bezel-free screen, adjusting luminance, color temperature provides the best visibility for audience.
- 3 in 1 board including power, controller, boardsignificantly reduce EM generation.
- Ultra Slim : 29mm Thickness compared with standard(70~90mm), very thin and light.
- Light Weight : 4.5kg/per panel provides screen’s full load reduction, quick and convenient maintenance of the screens.
- Wall-mounting : The minimum projection of 55mm thick on the wall mounted provides the best interior effect combined with the site.
- standing structure available, Rapid site construction
with minimum number of people.

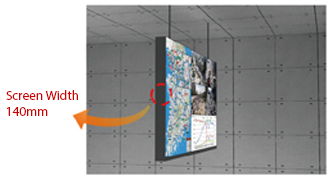

- 140mm minimum thickness for double faced screen.

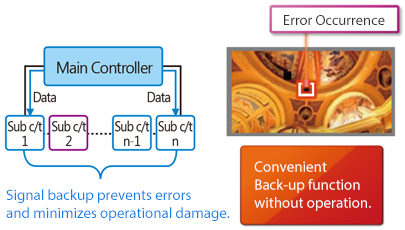

- Signal back up (Redundancy) : signal back-up prepare in the event of error.
